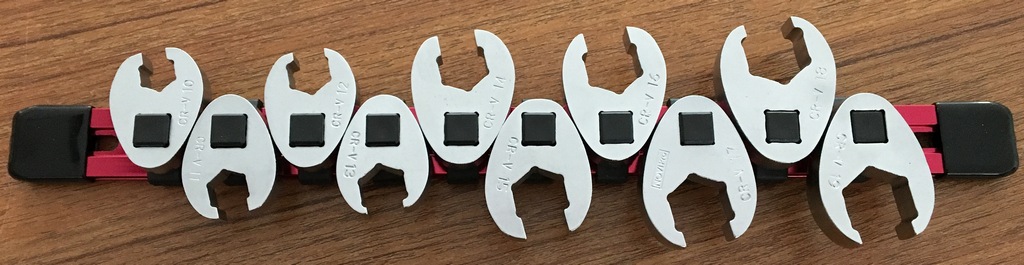

Crowfoot, Flare Nut

ANSI Standard - Reference ASME B107.21 design



Drop Forged Material Option:

     1. Hardened AISI6140 Alloy Chrome Vanadium (Cr-V) Steel (HRC 46° ± 2°)

     2. Hardened SCM440 Alloy Chrome Molybdenum (Cr-Mo) Steel (HRC 48° ± 2°)



Manufacture Finish Option:

     a. Satin Finish

     b. Mirror Finish

     c. Mirror Satin Finish

     d. Black Chrome Finish

     e. Customize Finish (Color Plating, Manganese Phosphate, Black Oxide...)



We provide OEM/ODM service. Once the demand fulfill the forging MOQ, the new size are welcome.



Packing Option:

     A. Bulk Packing

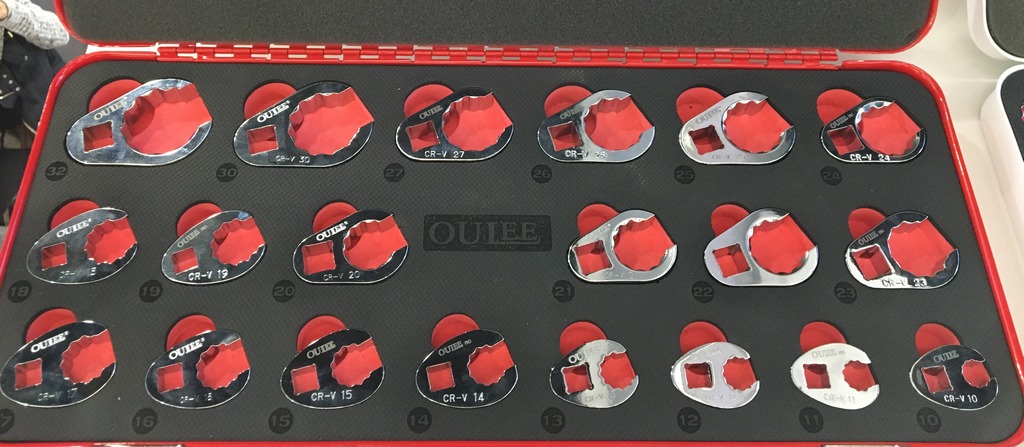

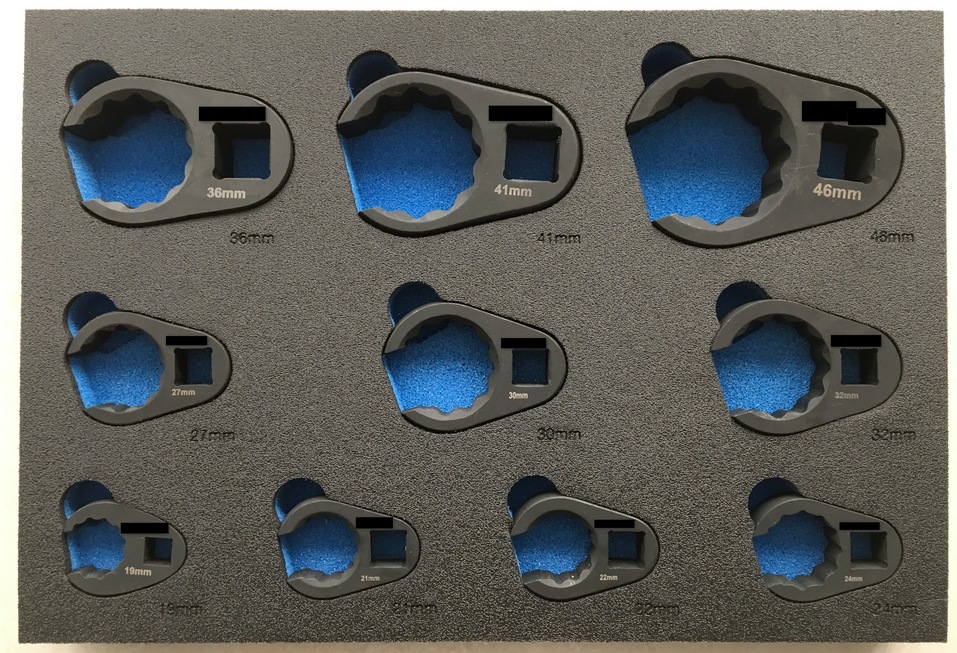

     B. Customize EVA packing

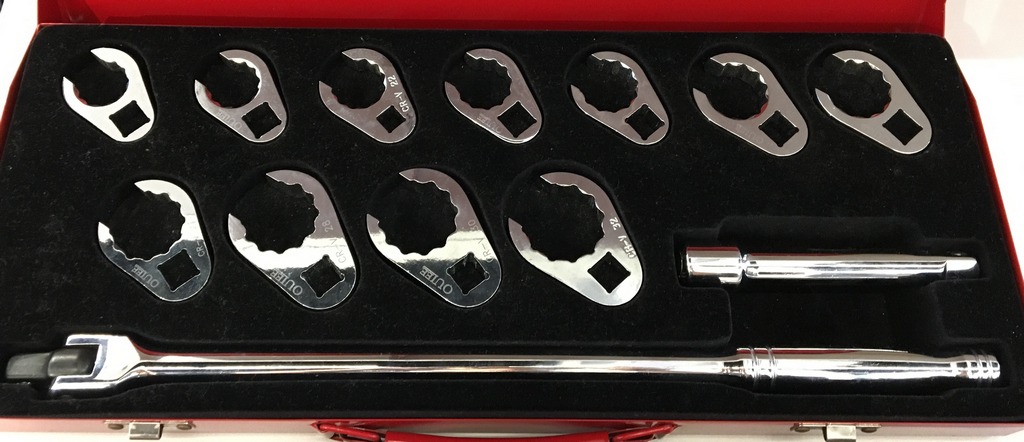

     C. Customize Tray packing

     D. Iron / Aluminum / plastic sheet packing



Description

METRIC Size Length SAE Size Square drive Product Feature
10 36.5 3/8"    3/8 dr.

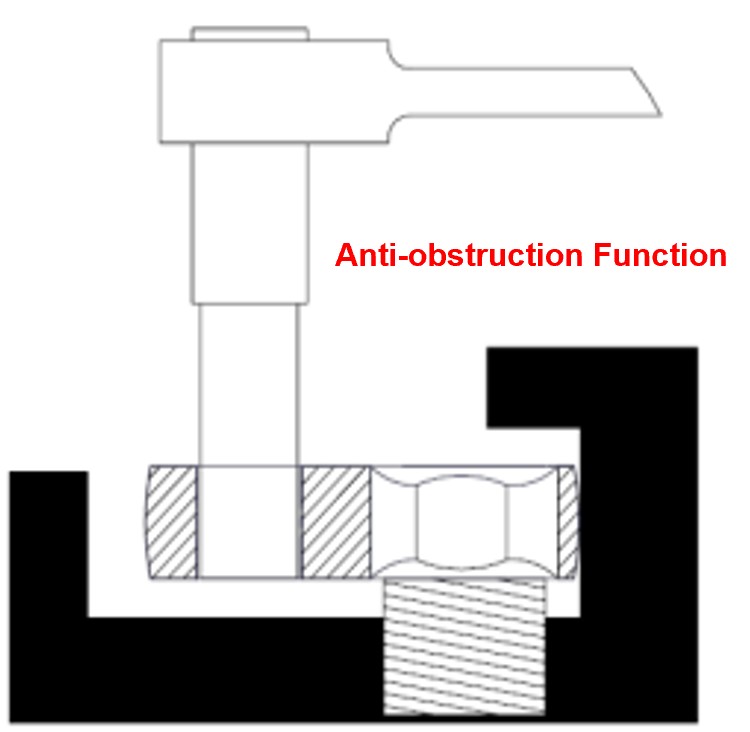

  • Support to use in obstruction area
  • Different material option to support different working requirement
  • Offer different finish in outlook to meet different market
  • Customize packing to fulfill different demand
11 36.5 7/16"    3/8 dr.
12 36.5      3/8 dr.
13 36.5 1/2"    3/8 dr.
14 41.5 9/16"    3/8 dr.
15 41.5      3/8 dr.
16 41.5 5/8"    3/8 dr.
17 45.5 11/16"    3/8 dr.
18 45.5      3/8 dr.
19 45.5 3/4"    3/8 dr.
20 53   1/2 dr.
21 53 13/16" 1/2 dr.
22 55 7/8" 1/2 dr.
23 55   1/2 dr.
24 55 15/16" 1/2 dr.
25 61 1" 1/2 dr.
26 61   1/2 dr.
27 61   1/2 dr.
30 68.5   1/2 dr.
32 69.5   1/2 dr.
33 84.5        3/4 dr.
34 84.5        3/4 dr.
35 84.5        3/4 dr.
36 84.5        3/4 dr.
38 90.5        3/4 dr.
41 90.5        3/4 dr.
46 101        3/4 dr.
48 104        3/4 dr.
50 104        3/4 dr.
