ANSI Standard - ASME B107.39

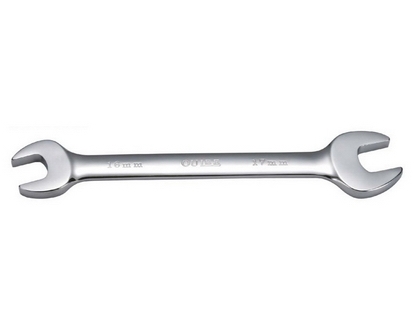

TR type - 15 degree offset Double Open End Wrench

Material: AISI6140 Chrome Vanadium Steel (Cr-V)

Manufacture Finish Option: a. Satin Finsh

                                       b. Mirror Finish

                                       c. Mirror Satin

                                       d. Customize Finish (Black Chrome, Manganese phosphate, color painting...)

Description



METRCI SIZE LENGTH SAE SIZE
6 x 7 108   1/4" x 5/16"
8 x 9 127
10 x 11 141  3/8" x 7/16"
12 x 13 163  1/2" x 9/16"
14 x 15 185  9/16" x 5/8"
16 x 18 208  5/8" x 11/16"
17 x 19 225  11/16" x 3/4"
19 x 22 240  3/4" x 7/8"
20 x 22 240
21 x 23 252
23 x 26 293
24 x 26 293  15/16" x 1"
24 x 27 293
30 x 32  340 1-1/8" x 1-1/4"
